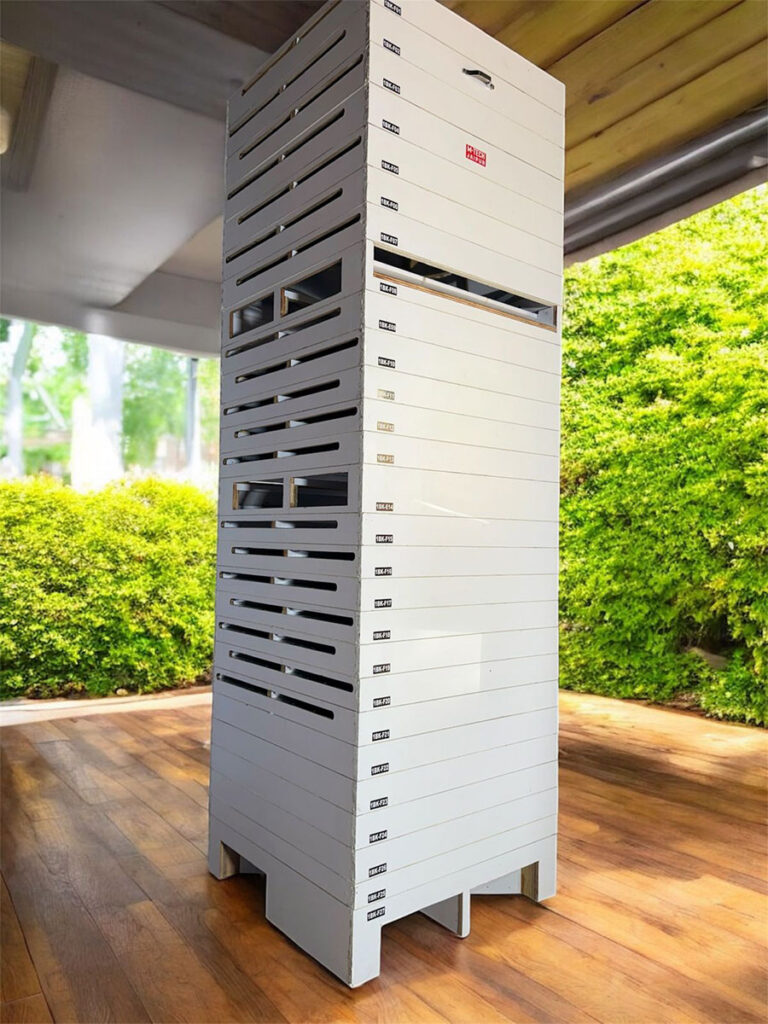

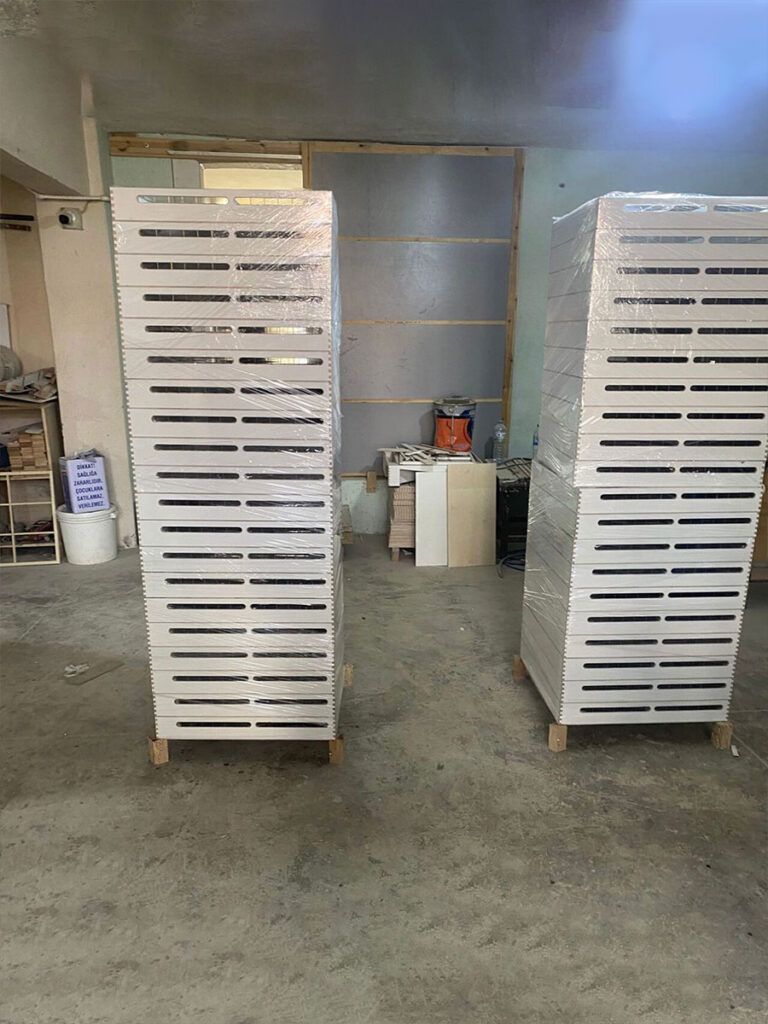

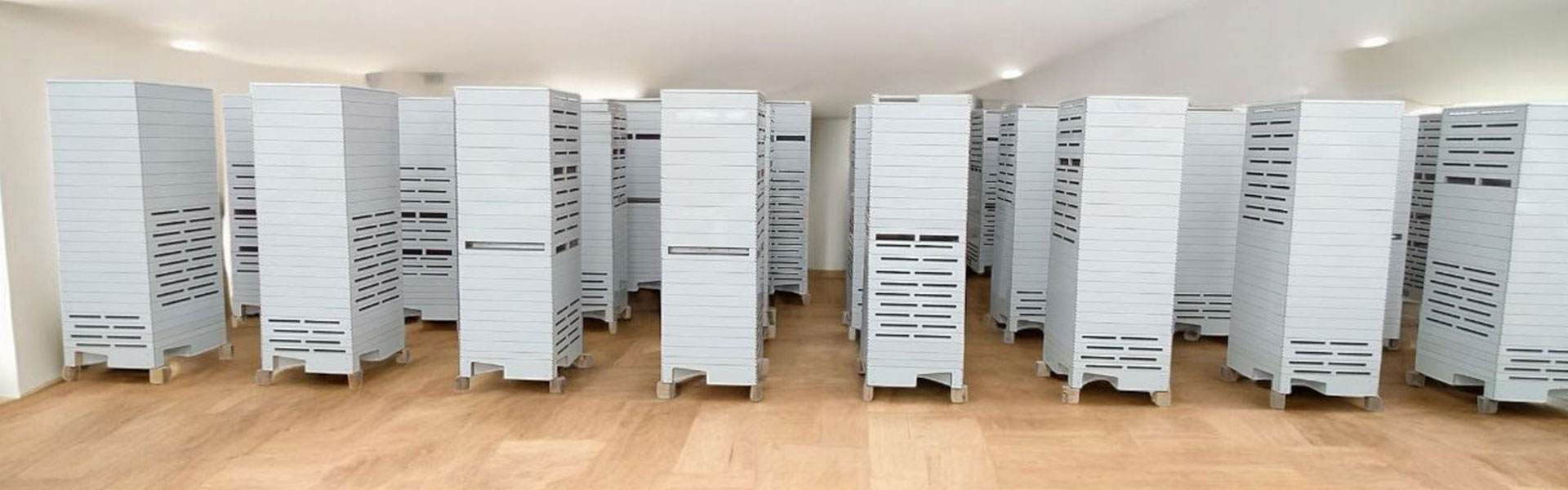

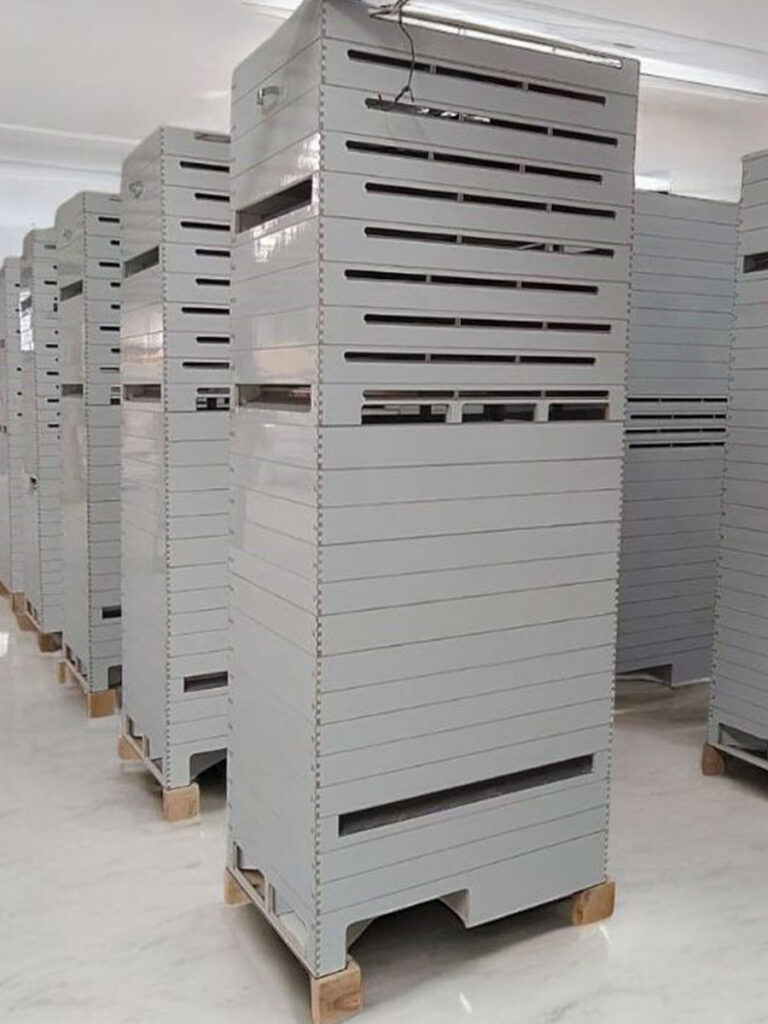

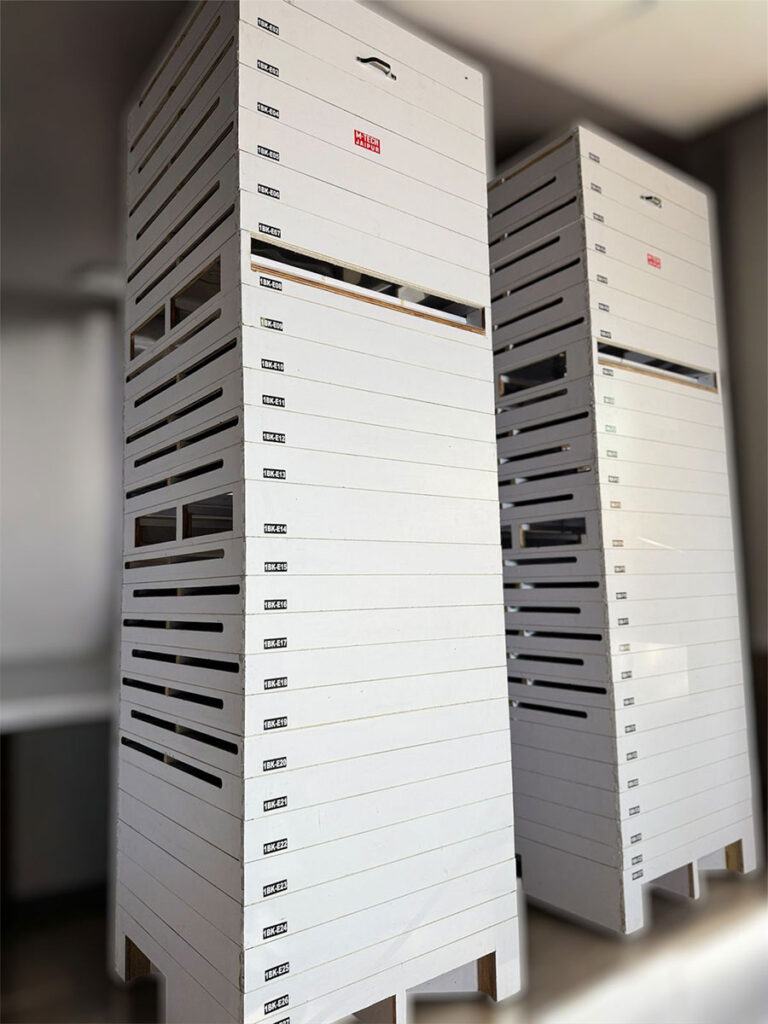

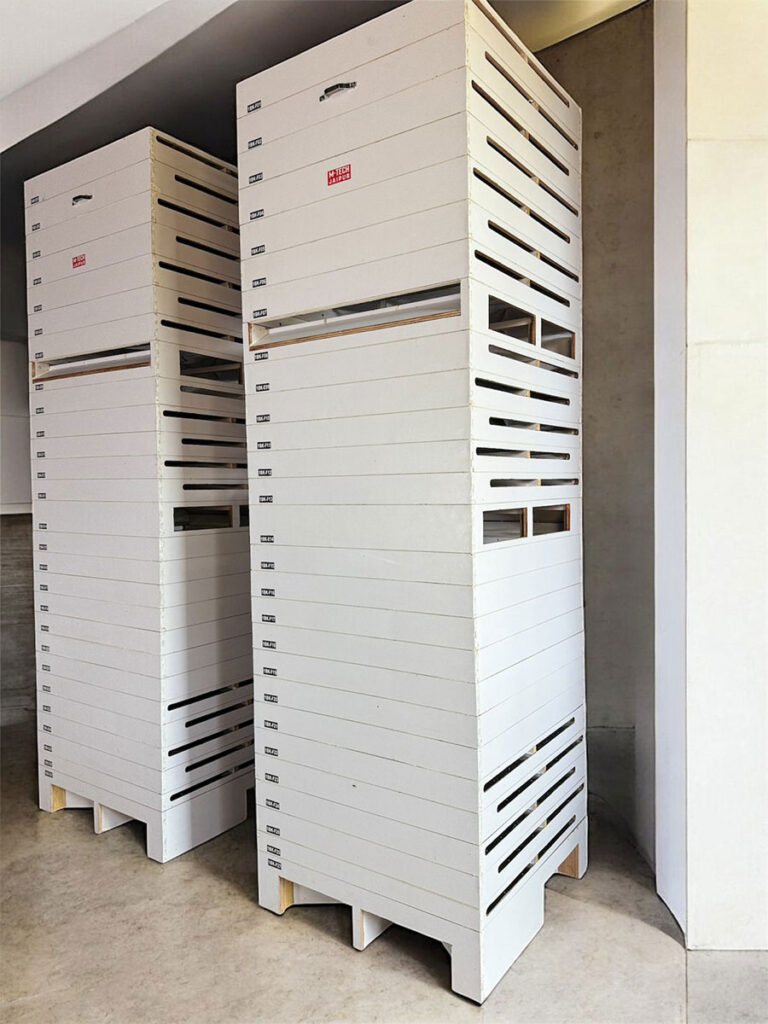

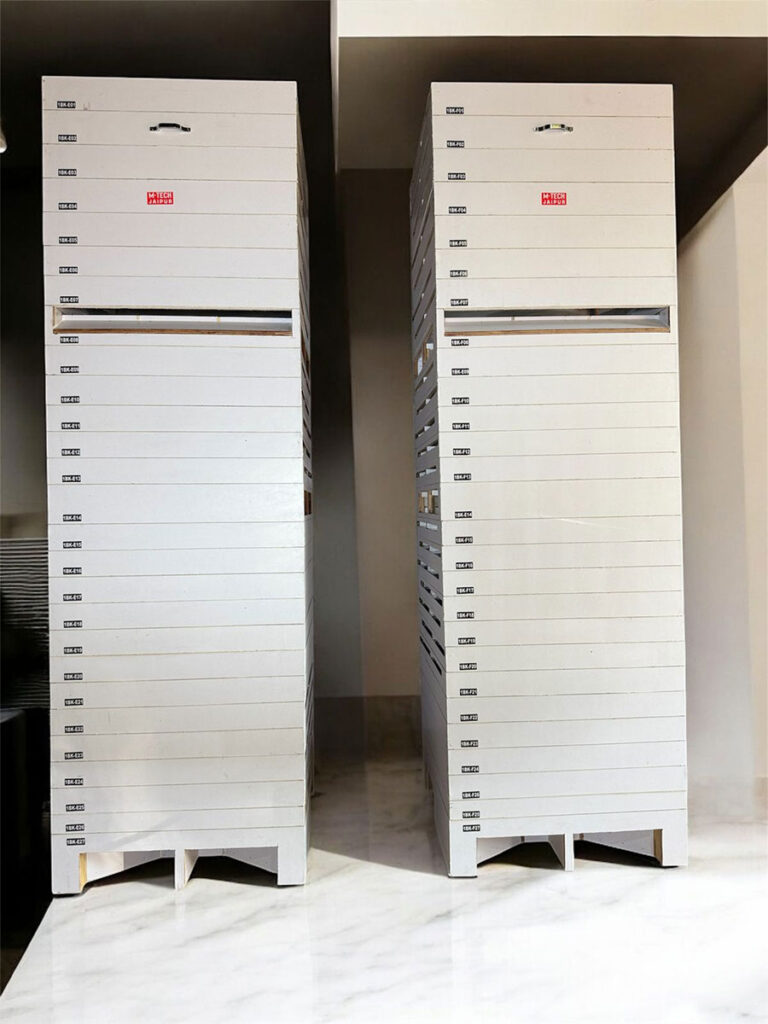

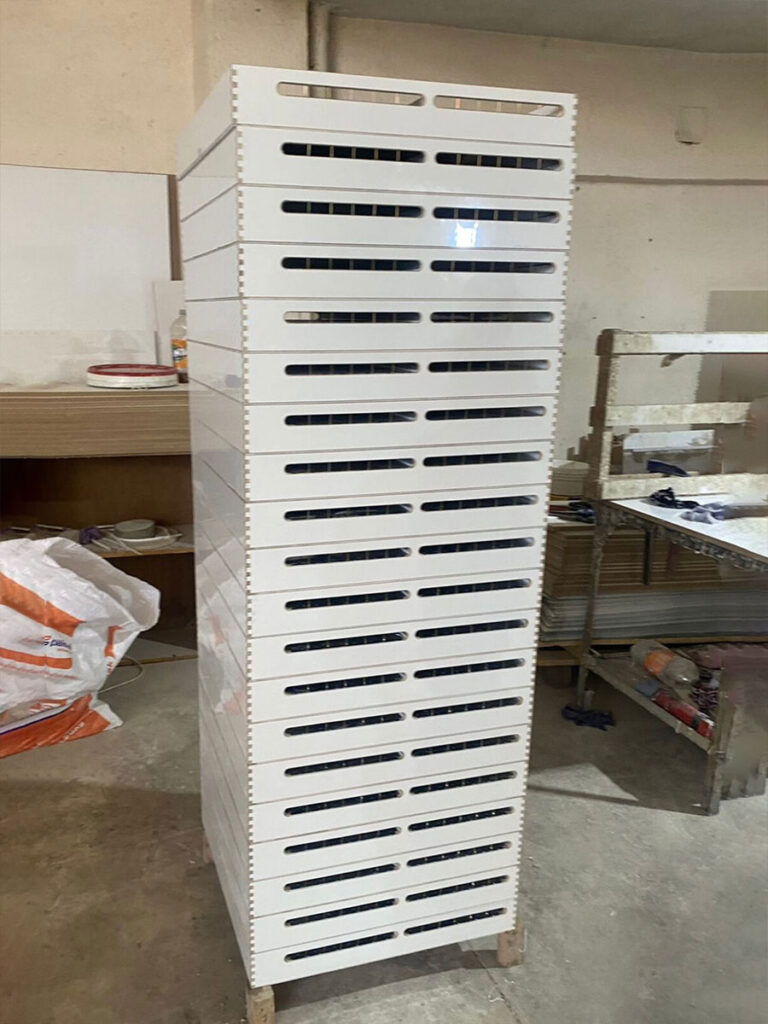

BÜHLER Plan Shifter Box
BÚHLER,IMAS,UGUR
PLAN SHIFTER BOX
Size 8/20,8/22,8/24,8/26,8/28
- Plansifter is on of the main machines in milling section of flour mill which provides sieving of products
- For tensioning of the sieves special calibration device.
- Total impermeability is provided and no free space left between sieves.
- Cases are easy removable.
- Each passage can be used with two entries as two passages.
- Of the calibration ability of centrifugal force it is possible to calibrate the diameter of the rotation of plansifter.
- Inner side of plansifter is done by the normatives of the food processing industry.
- Inner sides of plansifter have smooth surface and it provides smonth flow of product and prevent any insects and larva formation.
- Machine is used in mills for high productivity in sieving of products.
- Machine has high productivity and small sizes.
- Cases and teloras can be used in different sizes and height
ENQUIRE NOW
| MODEL | A | B | C | D | E | F | G | H | J | K | L | M | N |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MT-KE-4/24 | 1876 | 2498 | 1516 | 1751 | 670 | 796 | 746 | 350 | 1900 | 740 | 442 | 180 | 900 |
| MT-KE-4/28 | 2176 | 2898 | 1516 | 1751 | 670 | 796 | 746 | 350 | 1900 | 740 | 542 | 180 | 900 |
| MT-KE-6/24 | 1876 | 2498 | 2262 | 2498 | 670 | 796 | 746 | 350 | 1900 | 740 | 442 | 180 | 900 |
| MT-KE-6/28 | 2176 | 2898 | 2262 | 2498 | 670 | 796 | 746 | 350 | 1900 | 740 | 542 | 180 | 900 |
| MT-KE-8/24 | 1876 | 2509 | 3008 | 3243 | 670 | 796 | 746 | 350 | 1900 | 740 | 455 | 180 | 900 |
| MT-KE-8/28 | 2176 | 2834 | 3008 | 3243 | 670 | 796 | 746 | 350 | 1900 | 740 | 476 | 180 | 900 |
| MT-KE 4/30 JUMBO | 2270 | 2992 | 1776 | 2062 | 860 | 906 | 866 | 400 | 1900 | 892 | 542 | 180 | 1200 |
| MT-KE 6/30 JUMBO | 2270 | 3282 | 2642 | 2928 | 860 | 906 | 866 | 400 | 1900 | 892 | 792 | 220 | 1200 |
| MT-KE 8/30 JUMBO | 2270 | 2897 | 3508 | 3814 | 860 | 906 | 866 | 400 | 1900 | 892 | 442 | 185 | 1200 |
| MODEL | PASSAGE NUMBER (pcs) | CASE DIMENSION (mm) | SIEVE AREA IN (m²) | MOTOR POWER (kw) | WEIGHT~ (kg) |
|---|---|---|---|---|---|
| MT-KE-4/24 | 4 | 640×640 | 23,3-27,9 | 4 kw 1000 | 2500 |
| MT-KE-4/28 | 4 | 640×640 | 27,9-32,6 | 4 kw 1000 | 2750 |
| MT-KE-6/24 | 6 | 640×640 | 34,9-41,9 | 5,5 kw 1000 | 3260 |
| MT-KE-6/28 | 6 | 640×640 | 41,9-48,9 | 5,5 kw 1000 | 3710 |
| MT-KE-8/24 | 8 | 640×640 | 46,6-55,9 | 7,5 kw 1000 | 4025 |
| MT-KE-8/28 | 8 | 640×640 | 55,9-65,2 | 7,5 kw 1000 | 5400 |
| MT-KE 4/30 JUMBO | 4 | 740×740 | 34,4 – 41 | 5,5 kw 1000 | 3000 |
| MT-KE 6/30 JUMBO | 6 | 740×740 | 57-62 | 7,5 kw 1000 | 5500 |
| MT-KE 8/30 JUMBO | 8 | 740×740 | 73,0-83 | 11 kw 1000 | 6600 |
